Overview
The Lorex Smart Home Security Center (LSHSC) serves as the center of your own personal smart home eco-system. It is a revolutionary home monitoring solution that’s designed for easy security monitoring while maintaining maximum privacy. This bundle includes Indoor and Outdoor Wi-Fi Security Cameras. You can also expand your coverage with further Wi-Fi Cameras and Accessory Sensors to build the perfect security system for your home.
LHC-K22
SPECIFICATIONS
1

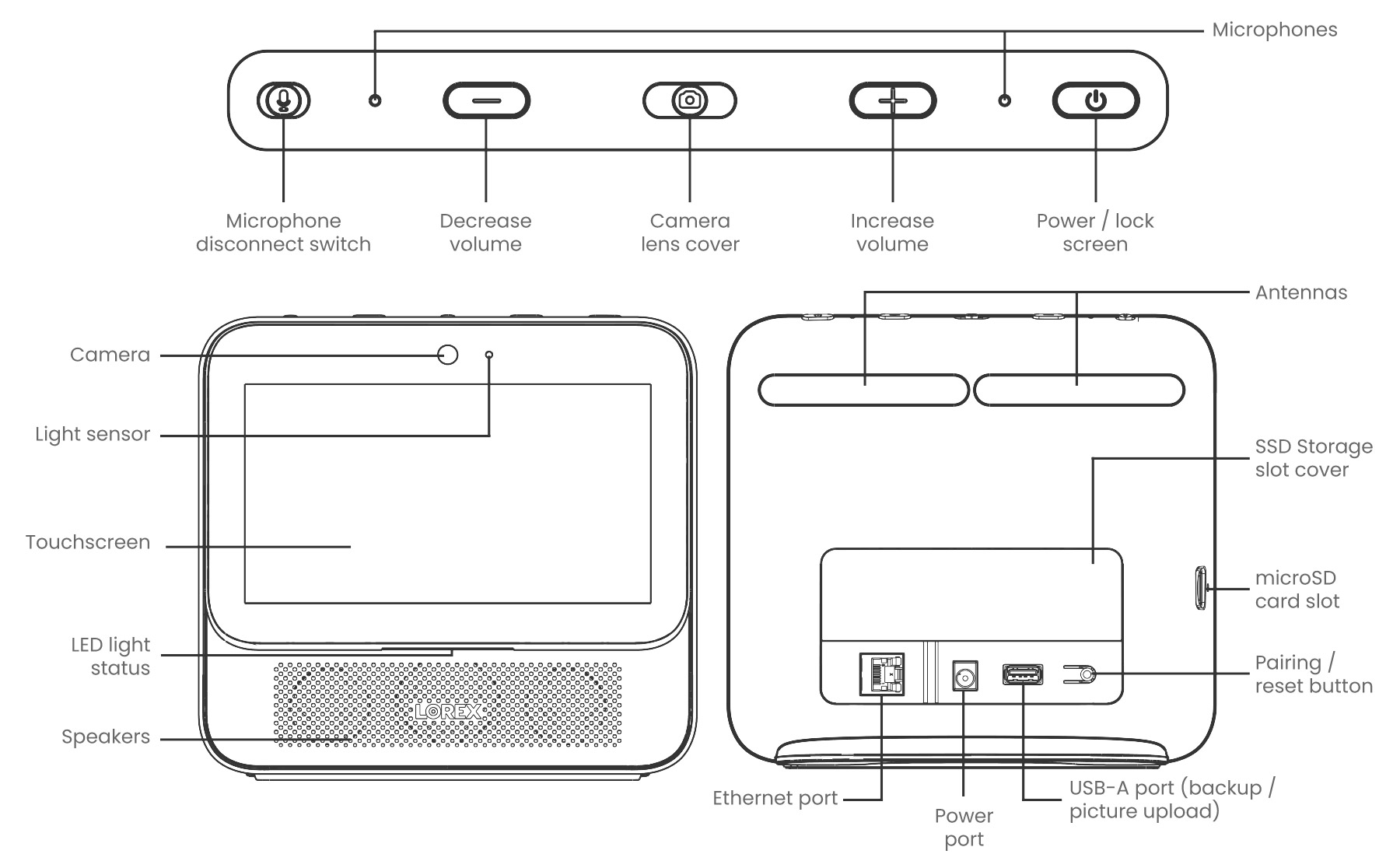

Lorex Home
Center
7″ touch-screen control hub
129°
FIELD OF VIEW
Ideal for monitoring wide, open areas
64GB
MICRO SD
Maximum 1x 256GB
microSD /1TB M.2 2280 Sata SSD M.
Works with
Lorex Home™ App
More than a security system, the center of your home
The all-in-one Lorex Home Center simplifies your home monitoring experience with its intuitive touch smart display. You can also use your voice to perform simple commands, such as:
“Lorex, show me all outdoor cameras”
“Lorex, show me what happened yesterday at the ‘front door’ camera”
“Lorex, show me all people* at the ‘front door’ camera between 2 and 3pm”
“Lorex, turn on warning lights on all outdoor cameras”
“Lorex, turn privacy mode on for all indoor cameras”
* Requires supported camera and setting to be turned on
Touch Screen
Secure and Private
Multi-Device Compatibility
Lorex Voice™ Assistant
Local Security Grade Storage
Control and access all compatible Lorex devices
Control features with the intuitive 7-inch touch display*.
Lorex Home Center Compatibility
Pair a variety of Lorex wireless devices and control them from the Lorex Home Center.
How to Pair Devices to the Lorex Home Center
The connection process for some Lorex Home Center compatible devices differs:
Direct Setup Method
Connect directly to the Lorex Home Center
App Setup Method
Connect to the Lorex Home App *
W282CAD
AK41TK
AM41TK
V261LCD
W261ASC
W261AQC
*Make sure to upgrade the camera to the latest firmware via the app
Remote viewing from your mobile with Lorex Home™
Your home will always be within reach with help from the Lorex Home Mobile App. This versatile app allows you to remotely access your Lorex Home Center so you can easily view live videos, customize your system settings, playback recorded motion events and more. You can also link your sensors to nearby Lorex Wi-Fi cameras to automatically start recording whenever one of your sensor alarms are triggered.
Frequently Asked Questions
Still Have Questions?
Step 1. Connect your Lorex Home Center to your network via Ethernet or Wi-Fi.
Step 2. On the Lorex Home Center, go to Home Screen > Device Settings > Device Info > Lorex Home Center, then tap Device ID to open the QR Code.
Step 3. Now, get your smartphone and open the Lorex Home app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your Lorex Home Center.
Step 4. Follow the on-screen instructions on adding your Lorex Home Center to the Lorex Home app.
Step 1. Go to Home Screen > Device Settings > Security Settings.
Step 2. Turn On or Off Required passcode to unlock or Face Unlock.
Step 3. Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.
NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex Home app.
Step 1. Go to Home Screen > Device Settings > Network Settings.
Step 2. Tap Wi-Fi Network, then toggle the button to on or off.
Step 3. Tap Wired Network, then toggle the button to on or off.
W282CA
Smart Indoor/Outdoor Wi-Fi Security Camera:
-
Smart Motion distinguishes movement detected by either people or vehicles, limiting unnecessary alerts1
-
The Lorex Home™ app sends you motion notifications ensuring you don’t miss a thing
-
Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
-
When light is limited, take advantage of 50 ft (15 m) IR night vision3
-
View live or recorded video from your smartphone with the Lorex Home™ app (compatible with: Apple TV™)4
-
Local microSD storage, expandable up to 256 GB
-
Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person or vehicle is detected
-
Deter uninvited guests with remote activated siren
-
Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk5
1. Accuracy of Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
*A 10ft power extension cable is included with the power adapter (9.5ft), giving you a total of 19.5ft power cable. Use of multiple extension cable is not allowed.
FEAUTRES
LHC-K3
1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
2. Compatible with certain Lorex wireless cameras only.
3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks.
4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
*Check packaging for included storage
**Devices stream by default using substream at lower resolution
W261ASC-E
Smart HD WiFi Security Camera:
-
Receive push notifications from the Lorex Home app1
-
2-way communication allows for seamless communication with your visitor/family, if you’re in a different room or even different home.
-
Easily access your videos with voice commands (Compatible with: Google Assistant and Amazon Alexa)2
-
View live or recorded videos from your smartphone, tablet, or Apple TV3
-
View more with night vision range up to 32ft (10m)4
-
Convenient built-in local MicroSD card slot upgradable to 256GB
